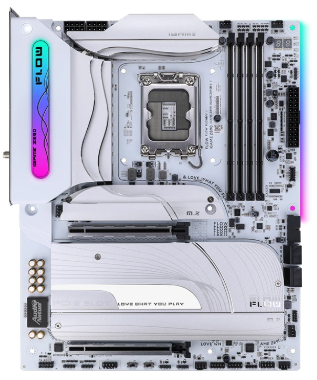

Model iGame Z890 FLOW V20
Product Series iGame Series
Chipset Intel Z890
Processor Supports Intel® Core™ Ultra processors that fit the LGA 1851 slot of the motherboard
(* Please visit www.colorful.cn for the latest memory compatibility list)
Memory 4 DDR5 memory slots, supporting up to 192 GB of memory (a single slot can support a capacity of up to 48 GB)
- Support DDR5-8800(OC)/8600(OC)/8400(OC)/8200(OC)/8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400/6200/6000/5800/5600/5400/5200/5000/4800MHz memory
- Support Intel® Extreme Memory Profile (XMP) memory technology
- Support dual channel memory technology
(* Please visit www.colorful.cn for the latest memory compatibility list)
SATA Ports 5 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA or M.2 NVMe hard disk devices
- M.2_1 slot: support 2242/2260/2280/22110 M.2 SSD (PCIe 5.0 x4, CPU channel)
- M.2_2 slot: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, CPU channel)
- M.2_3 slot: support 2242/2260/2280/22110 M.2 SSD (PCIe 4.0 x4, PCH channel)
- M.2_4 slot: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)
- M.2_5 slot: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4/SATA, PCH channel)
Board I/O Rear I/O:
- 4×USB 2.0 interfaces
- 4×USB 3.2 Gen 2 10Gbps Type-A interfaces
- 2×USB4 40Gbps Type-C interfaces (Supports video output, up to 4K 60Hz resolution)
- 1×DP 1.4 interface, Supports up to 8K 60Hz resolution
- 1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution
- 1×2.5G network interface
- 2×Wi-Fi 7 antenna interfaces
- 5×Audio interfaces
- 1×S/PDIF audio interface
- 1×BIOS update button
- 1×CMOS clearing key
On board:
- 2×USB 2.0 pins can expand 4 USB 2.0 Type-A interfaces
- 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 5Gbps Type-A interfaces
- 1×USB 3.2 Gen 2x2 Type-C slot can expand 1 USB 3.2 Gen 2x2 20Gbps Type-C interface (support PD3.0 @30W)
- 2×CPU fan pins
- 3×System fan pins
- 1×Water cooling pump pin
- 3×5V 3-pin ARGB pins
- 2×12V 4-pin RGB pin
- 1×Front audio pin
- 1×Front panel pin
- 1×Speaker pin
- 1×COM port pin
- 1×BIOS burner pin
Expansion Slots 1×PCIe 5.0 x16 slot
1×PCIe x16 slot (supports PCIe 4.0 x4 specification)
1×PCIe 4.0 x1 slot
BIOS 256M UEFI, support multiple languages
Power Management Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot
Hardware Monitor CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring
LAN RTL8125BG 2.5Gbit LAN, BE200 WiFi 7 wireless network card, Bluetooth 5.4
Audio Realtek ALC1220 high fidelity decoding chip, Support up to 7.1 channels
Configuration ATX
305 x 244 mm
